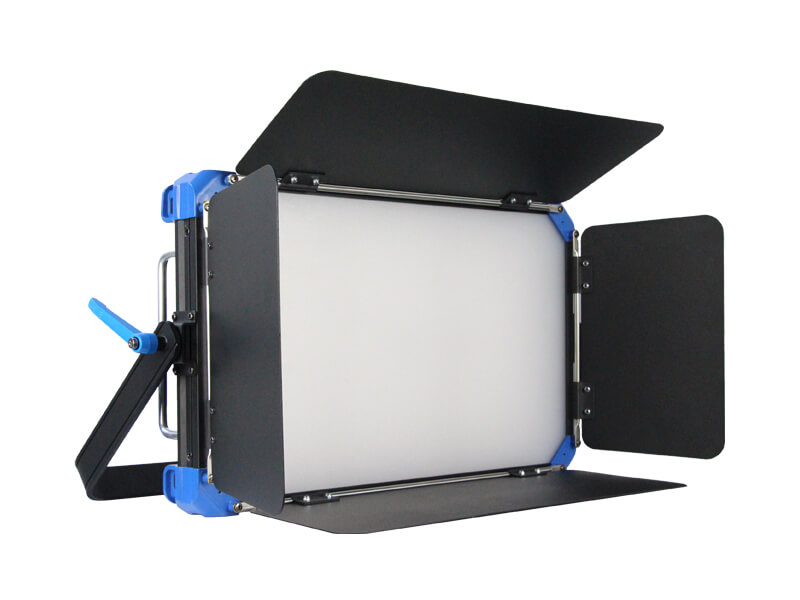

·The broadcast must use mute silent high-power LED panel lights. In order to meet this requirement, we designed this brand new 300W mute(with silent fan) LED panel lights. The lamp is equipped with two LED chips with color temperature and high brightness, and has a color temperature adjustment of 3200-5600K. It is very suitable for large TV stations, studios, multi-function halls and other film and television venues.
Features
·The lighting function of the light is controlled by DMX-512, which is very convenient;
·0-100% linear adjustment, smooth dimming without flicker;
·The lamp body adopts outer frame design, beautiful appearance, convenient installation, safe and reliable.
Technical Specifications
Light Sources
·LED: 700pcs*0.2W 2835 LED cool white + 700pcs*0.2W 2835 LED warm white)
·Color: white/warm white linear blending
·Service life: 50,000h
Light output
·Color temperature: 3200K-5600K adjustable
·Color rendering index: Ra≥95
·Dimming: 0-100% linear adjustment, smooth dimming without flicker
Controls and procedures
·DMX channels: 3CH/4CH(with strobe)
·Control mode: DMX512, Auto-run, Manual
·Beam angle: 135°
Electrical specifications
·Input voltage: AC100-240V, 50HZ-60HZ
·Power consumption: 300W
Structure specification
·Lamp body size: 624×372×111mm
·Net weight: 9.7kg
·Shell material: aluminum alloy
·Shape color: white
Use environment
·Protection level: IP20
·Environmental temperature: -25-40℃
·Cooling system: natural cooling system
List of standard accessories
·1 DMX signal line
·1 power cord
·1 set of light hook suspension bridge
Optional accessories list
·Safety rope: choose the model you need, extra charge is required
·Light hook: choose the model you need, extra charge is required
·Flight case: select the number you need to install, additional charges are required
Package Information
·Carton board box package size: 840*530*170mm (1pc/carton)
·N.W/G.W: 9.7kg/11kg
Sales repair spare parts list
·Switching power supply: VG-HTC1420C-P
·LED light board: VG-HTC1420C-L
·Motherboard: VG-HTC1420C-M
·Drive board: VG-HTC1420C-D
