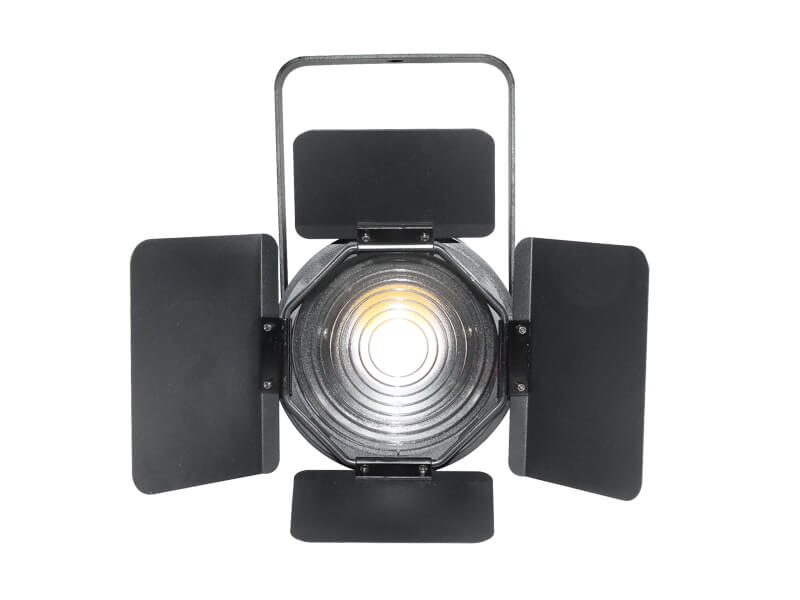

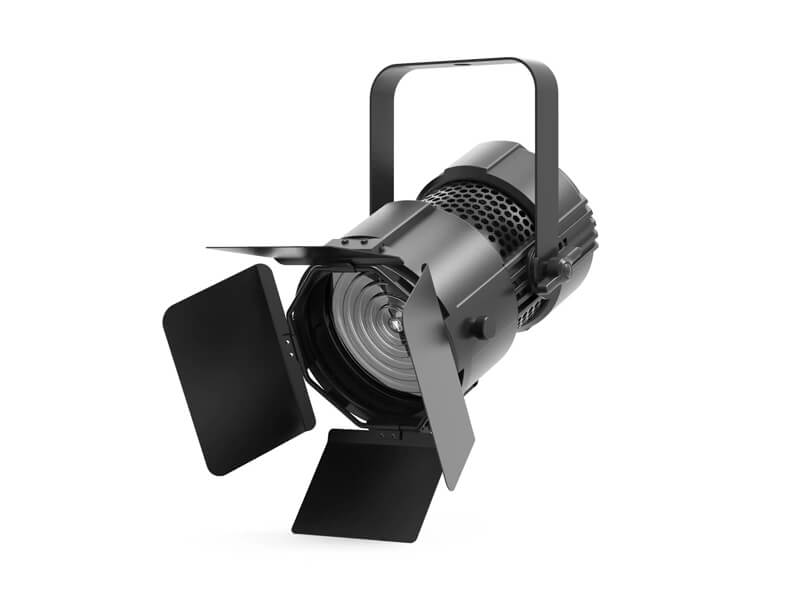

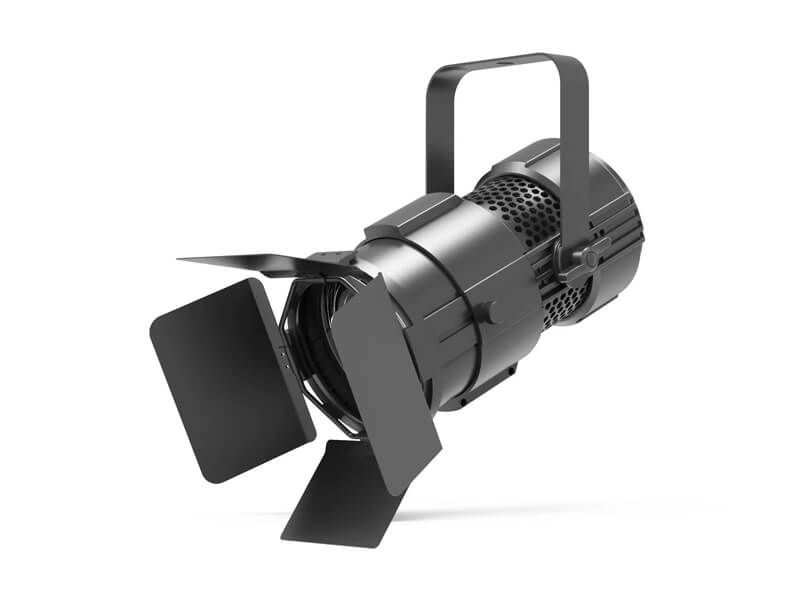

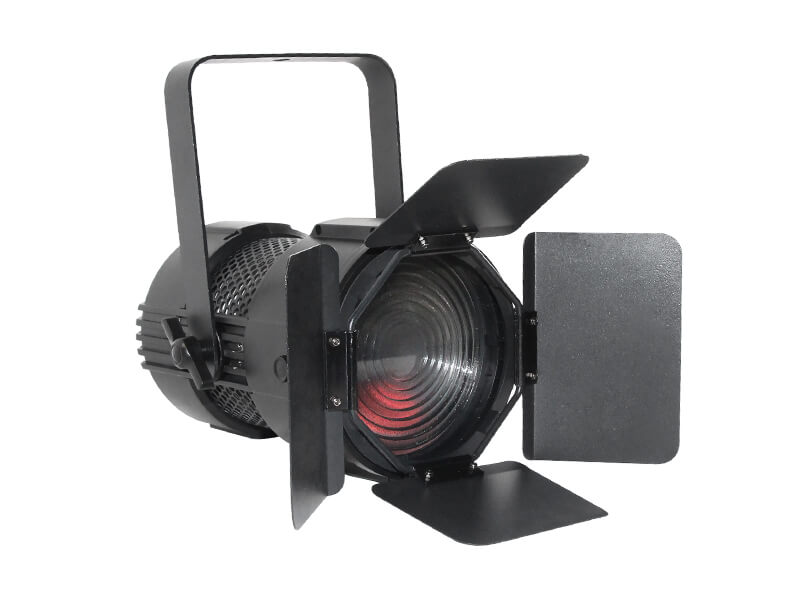

50W Bicolor Fanless LED TV Studio Fresnel Continuous Light

·This is a new mini 50W led fresnel spot light, which has very small size and compact structure. This light uses high efficiency optical lens, light soft. It’s a best choice for film and television performances, studio and other places.

Features

·The internal adopts full copper radiator large area, good heat dissipation, ensure the lifespan of the LED Lamps;

·Through efficient optical lenses, with special heat dissipation design, make the light is downy, small stray light, no glare, eyes more comfortable;

·Use the LED video projector scheme, the light energy saving 80%;

·Because of almost no infrared radiation, it has greatly improve work environment.

Technical Specifications

Light Sources

·LED: 1pc 50W COB LED Lamps

·Lifespan: 50,000h

·Color: CW, WW optional

Optics

·Beam angle: 10-35degree

·Dimmer: 0-100% linear dimmer

·Frequency of dimmer: 24K flick free light source dimmer system

·CRI: Ra≥95

·Special CRI: R9≥90, R15≥90

·Color temperature: 3200K-5600K

·Size of lens: 150mm(diameter) fresnel glass

Light Output

·Optimal projection distance: 2-4m

Control

·Control mode: DMX-512; Auto run

·DMX channel: 2CH, 3CH

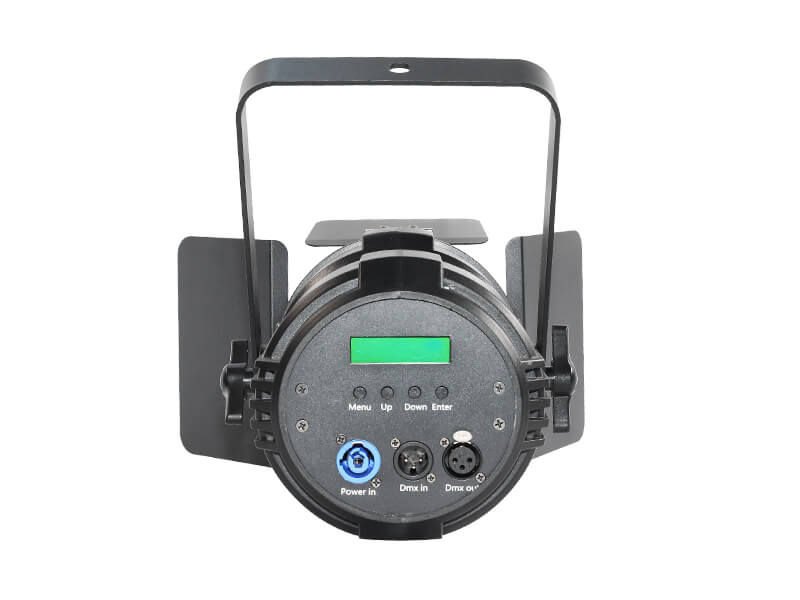

·Display of control panel: LCD display + 4 buttons

Power Supply

·Related voltage: AC100V-240V, 50/60Hz

·Related power: 60W

·Light output power: 50W

Construction

·Body dimension: D258*W220*H166mm

·Net weight: 2.5kg

·Shell color: black

·Shell material: aluminium die casting and steel

Working Environment

·Working temperature: -25-40℃

·Cooling: Radiator, without fan

·Temperature monitoring: built-in temperature protection sensor, by automatically adjusting the lamp power to carry out over temperature protection, display panel real-time check lamp operating temperature

·Protection rating: IP20

Standard Configuration Spare Part List

·Cable: 1pc 3-pin DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)

·User manual: English version user manual
