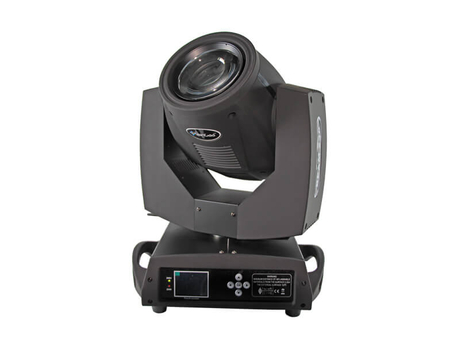

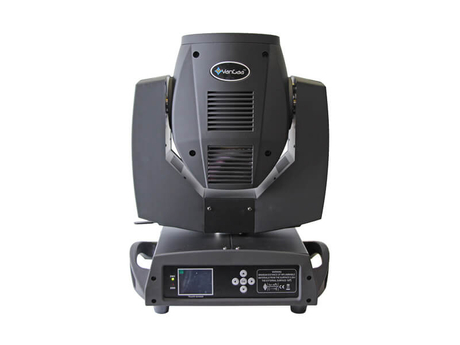

Night Club Entertainment 7R 230W Moving Head Beam Sharpy Light

·Refer to the latest technology of sharpy at home of China and abroad, our new 7R 230W Beam Sharpy was designed by senior engineers in stage lighting industry, they has passed six months test to make this new revised light. We have simplified each complex modules assembly system, we also have to make sure to realize all functions. Our new 230W beam sharpy has intuitive contracted structure easy to maintenance and repair. It has compact module structure, and the space between each modules are equalization and balance, the cooling wind channels are unobstructed, these features can make the light continuous use in long time.

Features

·The light using imported color chip and heat filter, the color temperature will more uniform and unification, it will ensure the light can putouts more colorful, more beautiful and more brightness;

·The light uses brand 7R 230W lamp default;

·We insist develop PCB by ourselves. All dip-in chips and electronic components have been changed into surface mount type to make sure the XY drive and module drivers separately, which make the circuit boards are more stable and reliable;

·Equips high-effect pot lamp, long lifespan;

·6 layers thicken film lens groups, good protection;

·Imported color chips, with real color and easy choose;

·Imported heat filter, can protect the gobos and color chips well.

Technical Specifications

Light Sources

·Lamp: 1pc 230W 7R Lamp

·Ballast: electronic ballast

·Lifespan of lamp: 2000h

·Color: white (equips color wheel)

Optics

·Beam angle: 3.8degree

·Gobo wheel: 1 gobo wheel, with 17 fixed gobos+ white, clockwise and counterclockwise two ways rotating

·Color wheel: 14 colors + white, with rotation rainbow effect

·Focus: 5 meters to infinity (0-4 degree)

·Autofocus: electronic autofocus

·Prism: fast rotation 8/12/24 prism, 22degree light put, clockwise and counterclockwise two ways rotating, moving effect

·Atomization: electronic atomization, imported atomization chip

·Dimmer: 0-100% linear dimmer

·Strobe: double stroboscopic, speed can reach 0.5~14 times per second, with random pulse strobe flash function

Functions

·Thermal protection: heat reach the protection value, the lamp will reduce the brightness, the fans with the temperature control function

·Location: hall location function, and high temperature magnet

·Reset: reset by DMX console or by the LCD control panel

·Lamp on and off: lamp on or off by DMX console or the LCD control panel

·Half voltage of lamp: can control the lamp working in half voltage

Light Output

·Luminous flux: 420000 Lm

·Illuminance: 420000 Lux (5m 3.8°)

·Optimal projection distance: 4-70m

Movement

·Pan(X axis): 540degree (16bit), automatic electronic error correction fuction

·Tilt(Y axis): 250degree (16bit), automatic electronic error correction fuction

Control

·Control mode: DMX-512; Master/slave mode; Demo mode

·DMX channel: 16CH, 17CH, 20CH

·Display of control panel: digital LCD, four touch buttons, with 180degree inversion function, can record the lamp and light using time

·Motor: 2 chase/3 chase motor

Power Supply

·Related voltage: AC90V-240V, 50/60Hz

·Related power: 300W

Construction

·Body dimension: D360*W410*H520mm

·Net weight: 17.5kg

·Shell color: black/white

·Shell material: ABS

Working Environment

·Working temperature: -25-40℃

·Cooling: Fan

·Protection rating: IP20

Equipment Optional Configuration

·Built-in battery: have the off-power setting ID address function

·Net work: artnet net work, can use the artnet signal control

Standard Configuration Spare Part List

·Cable: 1pc 3-pin DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)

·User manual: English version user manual

·Clamp bridge: 1 set clamp bridge

Optional Configuration Spare Parts List

·Clamps: different style clamps optional (choose from VanGaa homepage “Accessaries series”)

·Safety rope: different size safety ropes optional (choose from VanGaa homepage “Accessaries series”)

Package

·Carton package size: 470*440*560mm(1pc/carton)

·N.W/G.W/V.W: 17kg/20kg/24kg

·New Flight case package size: 830*480*730mm(2pcs/Flight case)

·Net weight: 30kg(only flight case)

·N.W/G.W: 34kg/65kg

·Flight case package size: 830*480*870mm(2pcs/Flight case)[With space of clamps]

·N.W/G.W: 35kg/68kg

Selling Maintain Spare Parts List

·Switching power supply: VG-MH230A-P

·Lamp: VG-MH230A -L, different brand optional

·Main board: VG-MH230A -M

·Drive board: VG-MH230A -D
