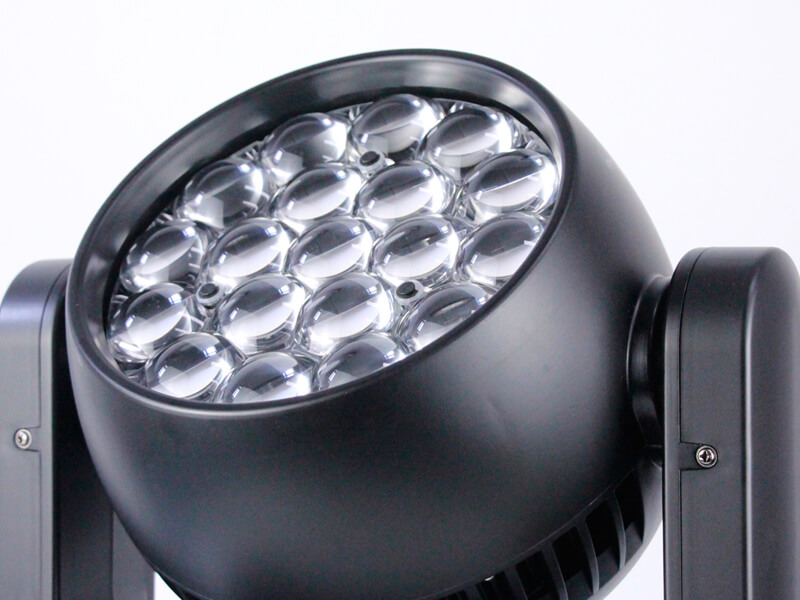

MAC Aura Martin Version19pcs 25W 4in1 LED Moving Head Wash Light for Wedding/Club

• This is a high powerful LED Moving Head Zoom Light, the zoom range can from 10degree to 60degree. It can be a beam light, and a moving head wash light. The light is very suitable for the stage performance, theatre, TV, studio, rental and other entertainment places.

Features

• Extremely small, fast and powerful LED Moving Head Beam Zoom Light;

• Wide zoom range from 10degree to 60degree;

• Great built-in lighting shows programs under master/slave mode;

• Blue LCD display for easy navigation;

• Perfect for stage, theatre, TV, studio, rental and discotheques.

Technical Specifications

Light Sources

• LED: 19pcs 25W original OSRAM 4in1 LED lamps (Tyanshine brand 4in1 LED is optional, model: Swift 1925Z-L, price is very different)

• Lifespan: 50, 000h

• Color: RGBW 4in1 colorful

Optics

• Beam angle: 10-60degree

• Dimmer: 0-100% linear dimmer

• Strobe: 1-25 times/second

Light Output

• Illuminance: 108500 Lux (full @1m 15°)

• Optimal projection distance: 4-50m

Movement

• Pan(X axis): 540degree

• Tilt(Y axis): 270degree

Control

• Control mode: DMX-512; Mater/slave mode; Demo mode

• DMX channel: Martin 14CH, 17CH

• Display of control panel: LCD display, four buttons

Power Supply

• Related voltage: AC100V-240V, 50/60Hz

• Related power: 500W

Construction

• Body dimension: D325*W188*H395mm

• Net weight: 9.2kg

• Shell color: black

• Shell material: ABS

Working Environment

• Working temperature: -25-40℃

• Cooling: Fan

• Protection rating: IP20

Standard Configuration Spare Part List

• Cable: 1pc 3-pin DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)

• User manual: English version user manual

• Clamp bridge: 1 set clamp bridge

Optional Configuration Spare Parts List

• Clamps: different style clamps optional (choose from VanGaa homepage “Accessaries series”)

• Safety rope: different size safety ropes optional (choose from VanGaa homepage “Accessaries series”)

Package

• Carton board box package: 590*490*290mm(1pc/carton) [c: 19-09-29]

• N.W/G.W: 12.4kg/16.8kg

• Carton board box package: 450*570*540mm(2pc/carton) [c:18-11-20]

• N.W/G.W/V.W: 19kg/23kg/28kg

• Flight case package size: 820*590*650 (4pcs/case) [c:23-12-18]

• Flight case net weight: 27kg

• N.W/G.W/V.W: 38kg/65kg/63kg

• Flight case package size: 770*710*630 (4pcs/case)(included tray) [c:18-11-20, case by shenshi]

• Flight case net weight: 33kg

• N.W/G.W/V.W: 37kg/69kg/70kg

• Flight case package size: 1090*672*620 (6pcs/case)

• Flight case net weight: 52kg

• N.W/G.W: 56kg/108kg

Selling Maintain Spare Parts List

• Switching power supply: Swift 1925Z-P

• LED lamp board: Swift 1925Z-L

• Main board: Swift 1925Z-M

• Drive board: Swift 1925Z-D

............(Swift 1925Z Aura LED Zoom Moving Head Wash Light)User Manual(Read Version)Martin Aura 14CH Version.pdf
