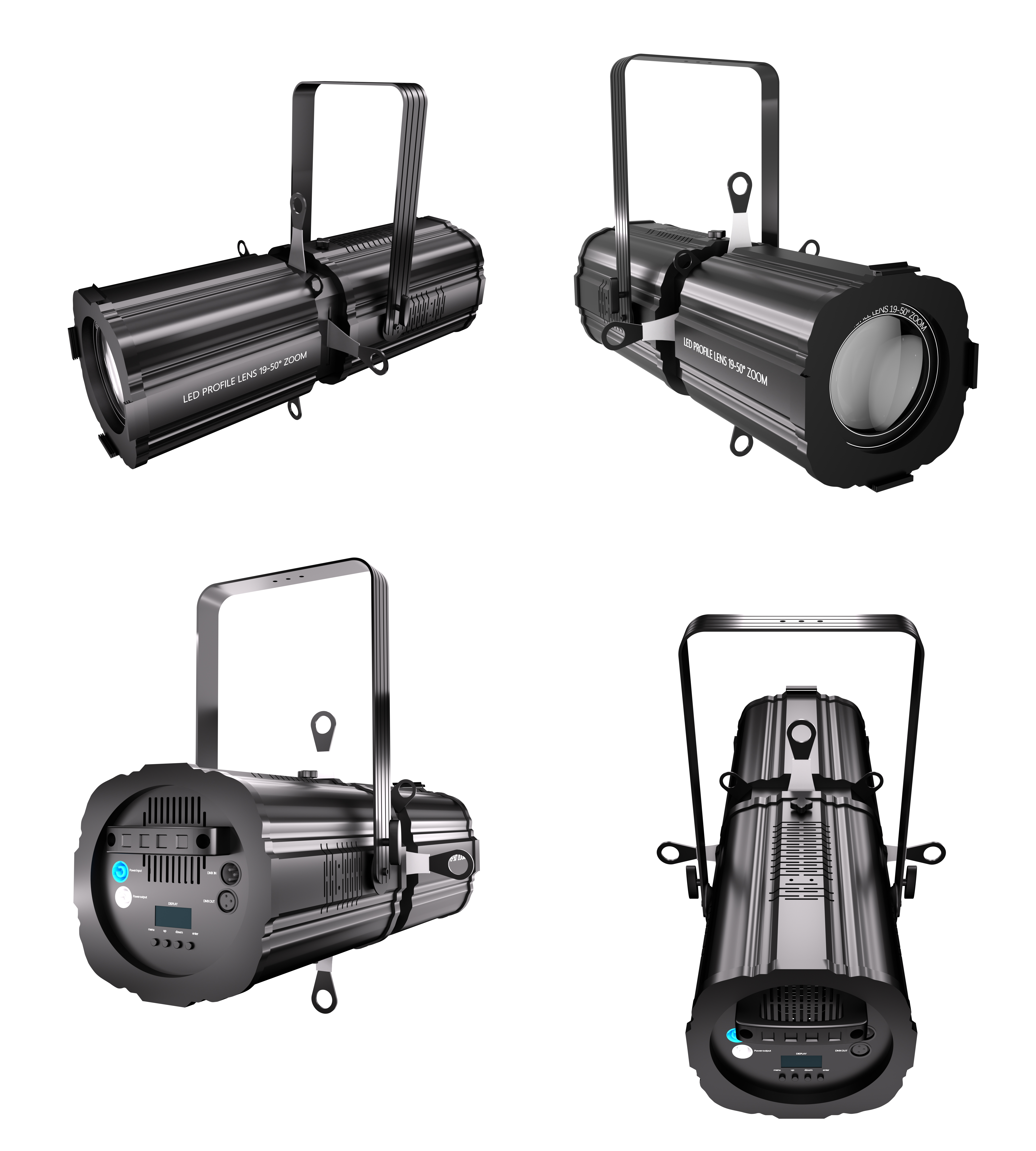

Motorize 400W RGBAL 5in1 Zoom LED Profile Spot Light

• This is a professional LED Zoom Lens Profile Spot Light. It uses high CRI and high power LED integrated lamp as the light emitting element. So the light has high light efficiency, good color rendering, low glare value, long lifespan, energy conservation, environmental protection and other advantages. The light has high brightness, uniform light, which is very suitable for meeting room, studio and other places.

Features

• Using DMX signal to realize the linear dimmer, more convenience.

• Silent equipment, it has good cooling system by all copper radiator and fan (intellectual regulation, noise controlled within 25db);

• Saving energy and protecting environment, pure color temperature;

• It is a very suitable substitute of the traditional 750 profile light;

• Smooth manual adjust the zoom of the lens degree.

Technical Specifications

Light Sources

• LED: 1pc 400W RGBAL 5in1 LED lamp

• Lifespan: more than 50000hours

• Color: RGBAL 5in1 color mixing

• Color temperature: 1800K-10000K

Optics

• Beam angle: 19-50 degree(DMX motorize adjustable)

• Gobo clip: 1pc gobo clip with steel gobo optional

• Dimmer: 0-100% linear dimmer

• Strobe: 1-25 times/second

• Optics: high-quality ETC optical lens

• Optics material: full high precision glass lens group

• Focus: manual focus adjustable

Light Output

• Illuminance: 11179 Lux (4m 19° 3200K)

• Optimal projection distance: 5-20m

• Spot diameter: 1.2m@4m distance, 19degree; 2.25m@4m distance, 50degree

Control

• Control mode: DMX-512; RDM; Demo; Master/slave

• DMX channel: 16CH

• Display of control panel: LCD display, 4 buttons

Power Supply

• Related voltage: AC100V-240V, 50/60Hz

• Related power: 450W

Construction

• Body dimension: D648*W340*H260mm

• Net weight: 13.5kg

• Shell color: black

• Shell material: aluminium alloy

Working Environment

• Working temperature: -25-40℃

• Cooling: Fan and heat radiator

• Protection rating: IP20

Standard Configuration Spare Part List

• Cable: 1pc 3-pin DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)

• User manual: English version user manual

• Gobo clip: 1pc

Optional Configuration Spare Parts List

• Clamps: different style clamps optional (choose from VanGaa homepage “Accessaries series”)

• Safety rope: different size safety ropes optional (choose from VanGaa homepage “Accessaries series”)

• Light visor: optional

Package

• Carton board box package size: 690*560*300mm(1pc/carton) [c: 19-11-19]

• N.W/G.W/V.W: 7.5kg/8.6kg/23.2kg

• Flight case package size: 950*730*550mm(2pcs/case) [ss case c:19-05-27]

• Net weight of case: 26kgs

• N.W/G.W/V.W: 28kg/54kg/75kg

Selling Maintain Spare Parts List

• Switching power supply: VG-LVF400Z-G-D-P

• LED lamp board: VG-LVF400Z-G-D-L

• Main board: VG-LVF400Z-G-D-M

• Drive board: VG-LVF400Z-G-D-D
